Name: PS6I Dry Wet Mix Shotcrete Machine EX Coal Mine Shotcrete Machine Simple Design
Brand: KEMING
Price: 1 USD

Brand Name : KEMING

Model Number : PS6I

Certification : CE,MA

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100 Set/Per Month

Delivery Time : 5~10 Work Day

Packaging Details : Export Wooden Case

Capacity : 6m3/h

Pressure : 0.6Mpa

Max aggregate : 20mm

Main power : 7.5kW

Horz. distance : 35m

Vert. distance : 15m

Contact Now

Type				PS6I wet shotcrete machine

Output				6 m3/h

Conveying distance(level/vertical)				30/10m

Water cement ratio				>0.40

Max.Aggregate.size				15mm

Hose inner size				57mm/64mm

Operating air pressure				0.5 MPa

Voltage				380V/660V

Air consumption				10 m3/min

Gauge				600m/900m

Dimension				2130×820×1200mm

Weight				1200Kg

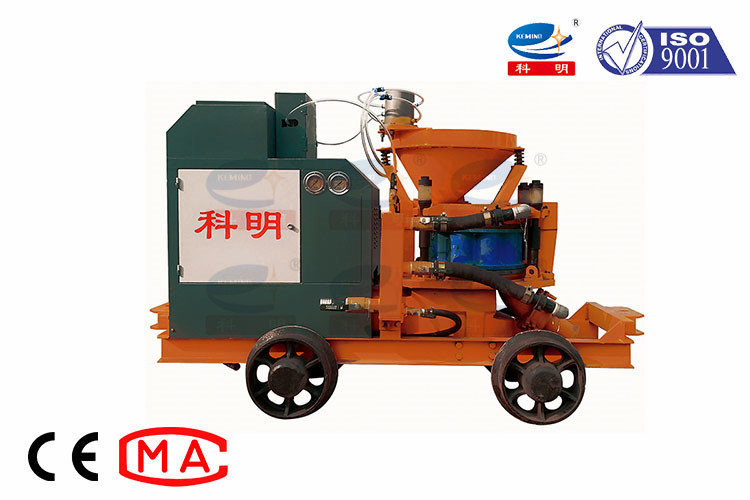

1. PS6I Coal Mine Shotcrete Machine with Anti-explosion Motor

2. special vibration hopper, reasonable four-point fastening mechanism, convenient accelerator adding system.

3. simple design, advanced technology, compact structure, convenient operation, maintenance and cleaning.

4. long conveying distance, fewer dusts, reliable performance.

1. PS6I Wet Shotcrete Machine is used for spraying half wet or wet concrete.

2. widely used in coal mine, tunnels, culverts, subway, underground engineering and other narrow space.

PS6I Dry Wet Mix Shotcrete Machine EX Coal Mine Shotcrete Machine Simple Design
